TITAN™ V3 BASIC controller set

Descrizione

TITAN™ V3 BASIC controller set

The TITAN™ V3 Drop-In mosfet controller set transforms your AEG into an advanced training replica. It gives you a tactical edge with lightning-fast trigger response, with the ability to modify the replica and adapt it to any mission with 20 available features. This is GATE’s most advanced and top-of-the-line model.

The TITAN™ V3 controller breathes a whole new life into the ASG electric replica.

The BASIC version of the controller includes the following features:

– AUG mode
– Diagnostic function
– Upgradeable software
– Cycle detection
– Adjustable trigger sensitivity

Caution! In order to unlock all the features of the version ADVANCED one must purchase FIRMWARE UPGRADE to version ADVANCED at www.gatee.eu/editions

Capabilities of the TITAN™ system:

– Trigger sensitivity adjustment
– Pre-cocking boost, which is an adjustment for keeping the spring taut (shortens the time from pressing the trigger to firing)
– Adjusts the fire selector modes
– Series firing mode
– Adjusts the rate of fire
– Adjusts the rate of fire
– Warns of low battery
-. Protects battery from damage
– “Sniper delay”
– Full cycle detection
– AUG mode – two trigger sensitivities can be set (single and continuous fire)

Detailed description of TITAN™ controller features:

REGULATIONTrigger sensitivity
The 2nd generation proximity sensor allows you to control the trigger sensitivity. There is no need to take the replica apart, just use the GATE™ Control Station app to do so. It will allow you to tailor the replica to your skills and individual preferences.

CONFIGURABLE FIRE SELECTOR (gen. 2)
The two sensors can be programmed in three ways, with up to 6 functions to choose from:
– SAFE-SEMI-AUTO
– SAFE-SEMI-SEMI
– SAFE-SEMI-BURST*
– SAFE-BURST*-AUTO
– SAFE-SEMI-BURST*/AUTO (short hold – BURST, long hold trigger AUTO)
– SAFE-BURST*-AUTO (SAFE by quickly switching modes, then: SAFE-SEMI-SAFE)
*BURST stands for series shooting mode.

CYCLE DETECTION
The TITAN™ control system can detect exactly the position in which it should end the cycle. This ensures that even the shortest squeeze of the trigger will result in a full firing cycle (replicas without the TITAN™ system often jam when the trigger is held too briefly if it does not finish firing. TITAN™ eliminates this defect).
This gives you:
– Automatic BURST (batch) mode, there is no need to set the batch cycle time, just set how many rounds are to be fired
– Automatic Pre-Cocking, which is available in every fire selector setting mode: SEMI BURST and AUTO. So unlike normal MOSFETs, you do not have to configure this function manually. Simply set the pre-cocking power of the spring
– ALWAYS FULL CYCLE – when pre-cocking is disabled TITAN™ will make sure that the gearbox performs a full cycle and the spring is sure to be released after firing. This results in greater gear reliability.

PRE-COCKING (gen.2*)
Because victory in a duel often depends on a fraction of a second, pre-cocking the spring results in a trigger response comparable to a real firearm. The spring is pre-tensioned, so at the same time we warn that using this mode on strong springs leads to faster wear of the replica’s internal parts.
There are two modes of using the PRE-COCKING function:
1. AUTO (-matic) mode – the spring is tensioned after each shot
2. SMART mode – the spring is tensioned by slowly depressing the trigger, and the shot is fired by quickly depressing it.
Three PRE-COCKING mode options can be programmed: HIGH / MID / LOW – each will adjust the spring tension to a different degree

*The PRE-COCKING mode now works in all selector modes: SEMI, BURST, AUTO and does not require manual calibration

BURST (gen.2)
The BURST mode, or programmable batch shooting, now only requires the selection of the number of balls to be fired (up to 10 balls / trigger pull). This is very useful on any MILSIM or when using real/low -cap magazines.

ROF CONTROL
Allows you to reduce the firing rate of the replica. This allows you to use more powerful Li-Po batteries and still have a rate of fire consistent with the actual weapon.

ROF STAB
Allows you to change the way ROF CONTROL works:
– ON – ROF Control adjusts the speed of the cycle, making the Gearbox run smoothly and reducing wear and tear on the replica’s internal parts
– OFF – RIF Control adds a pause between each shot to reduce the rate of fire. This gives a very realistic feel

SNIPER DELAY
Allows you to set the delay between each shot in SEMI mode to simulate delay by reloading or recoil compensation. Can be set to: 0.5s, 1.0s, 2.0s, 3.0s

For a comprehensive description of all features, please visit the manufacturer’s website: http://www.gatee.eu/

Full instructions can be found at the following address:

https://gatee.eu/en/products/titan/titan-v3-pl

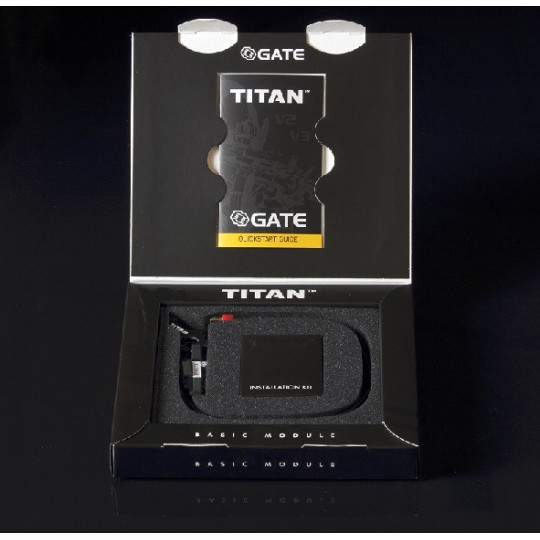

The kit includes:

– TITAN module with BASIC software

NOTE! In order to configure the TITAN chip, it is necessary to use a USB-Link or Tactical Programming Card, which are not included and must be purchased separately.
